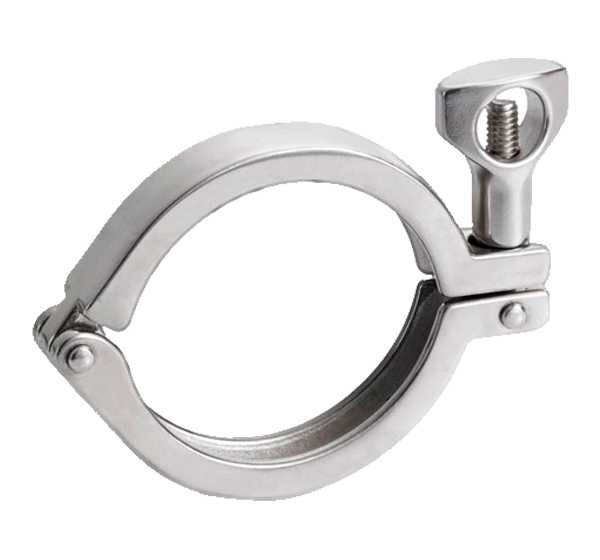

| CLAMPS – SS 304 1 BOLT | |||
|---|---|---|---|
| Item | Code | DN (mm-inch) | Ø External flange (mm) |
| C760238 | 5811 | 10 – ½” | 25.4 |
| C760240 | 5812 | 19 – ¾” | 34 |
| C760242 | 5813 | 38 – 1 ½” | 50.5 |
| C760244 | 5814 | 51 – 2″ | 64 |
| C760246 | 5815 | 63 – 2 ½” | 77.50 |
| C760248 | 5816 | 76 – 3″ | 91 |
| C760250 | 5817 | 89 – 3 ½” | 106 |
| C760252 | 5818 | 102 – 4″ | 119 |
| C760254 | 5819 | 114 – 4 ½” | 130 |
| C760256 | 5820 | 125 – 5″ | 145 |
| C760258 | 5821 | 133 – 5 ½” | 155 |
| C760260 | 5822 | 154 – 6″ | 166.7 |
| C760262 | 5823 | 159 – 6 ½” | 183 |
| C760264 | 5824 | 168 – 7″ | 191 |
| C760266 | 5825 | 202 – 8″ | 217.7 |
| C760268 | 5826 | 219 – 8 ½” | 235 |
| C760270 | 5827 | 254 – 10″ | 268.5 |
| C760272 | 5828 | 279 – 11″ | 305 |
| C760274 | 5829 | 305 – 12″ | 319 |
| CLAMPS – SS 304 2 BOLTS | |||
|---|---|---|---|
| Item | Code | DN (mm-inch) | Ø External flange (mm) |
| C760278 | 5830 | 38 – 1 ½” | 50.5 |
| C760280 | 5831 | 51 – 2″ | 64 |
| C760282 | 5832 | 63 – 2 ½” | 77.50 |
| C760284 | 5833 | 76 – 3″ | 91 |
| C760286 | 5834 | 89 – 3 ½” | 106 |
| C760288 | 5835 | 102 – 4″ | 119 |
| C760290 | 5836 | 133 – 5 ½” | 155 |
| C760292 | 5837 | 154 – 6″ | 166.7 |
| C760300 | 5838 | 219 – 8 ½” | 235 |
| C760302 | 5839 | 254 – 10″ | 268.5 |
